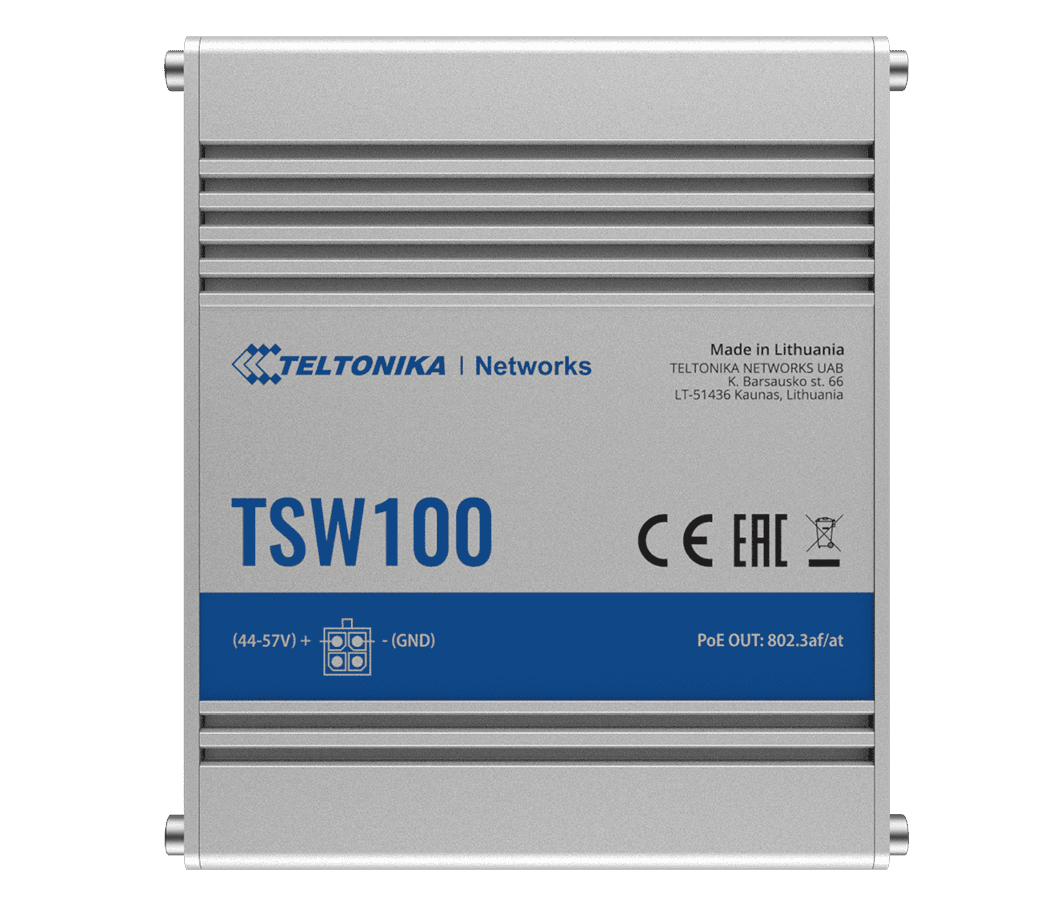

TELTONIKA TSW100 SWITCH

TSW100 FLYER (EN) updated 2020-09-16
TSW100 DATASHEET (EN) updated 2020-09-21
TSW100 QUICKSTART GUIDE(EN)updated 2020-09-01


    The TS100 is the first industrial unmanaged switch from Teltonika Networks. TS100 is equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network. This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

Download Products catalog 2021 January

Main Features


Plug-N-Play – No additional configuration needed

Mounting – DIN rail and surface mounting options

PoE – 4 x PoE ports with 802.3af and 802.3a support

Durability – Rugged aluminium housing

Power Budget – Total power budget at PSE up to 120W

Ethernet – 5 x Gigabit Ethernet with speeds up to 1000 Mbps
